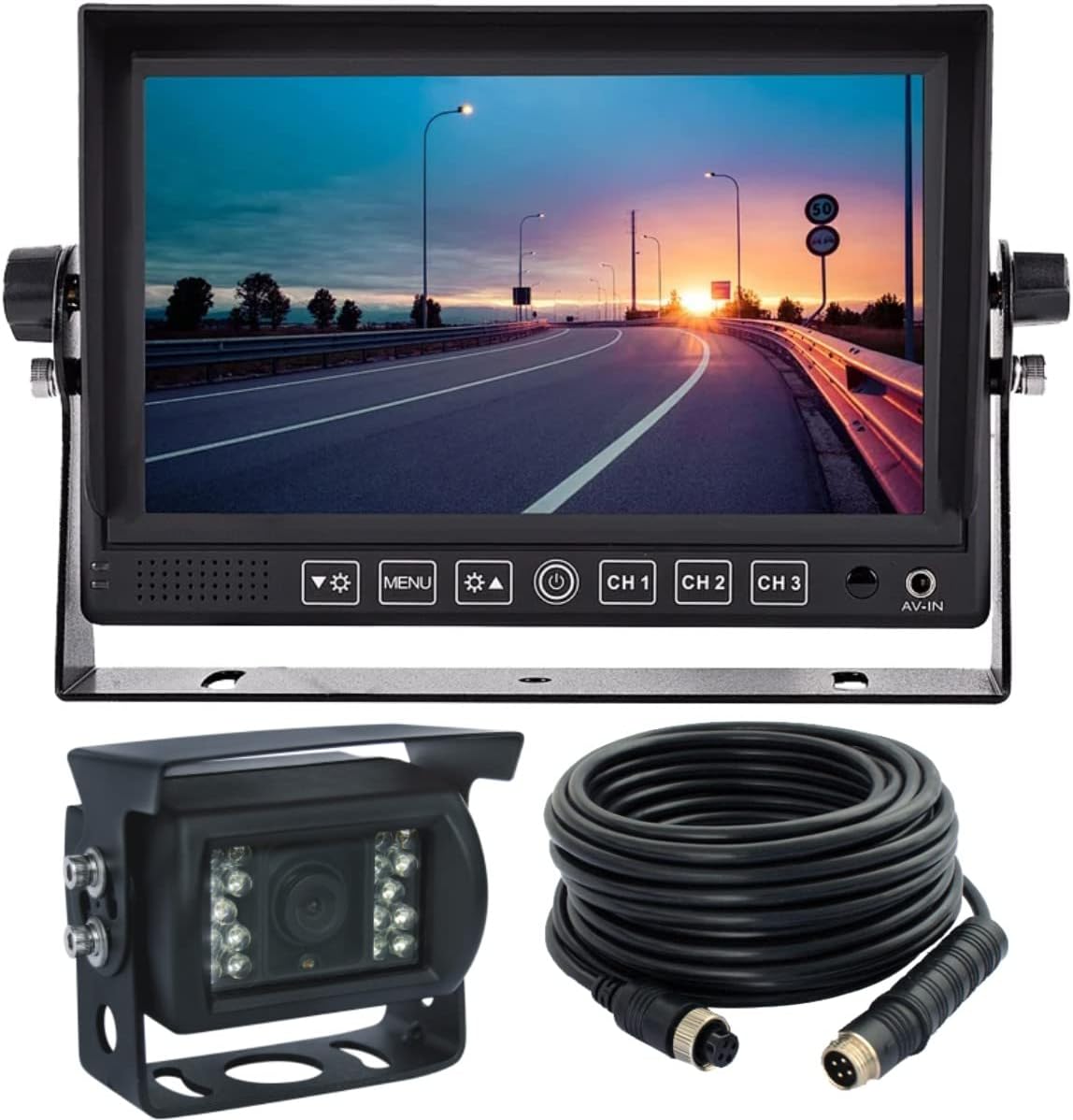

Wired 7 LCD Monitor Backup Camera System with Night Vision IP69K Waterproof Camera N122896
Wired 7 LCD Monitor Backup Camera System with Night Vision IP69K Waterproof Camera N122896
【Touch Button Monitor】7' HD monitor has upgraded touch buttons and digital LCD which provides clear image. It has free power input range DC12V~24V. And it takes up to 3 video inputs. Monitor can be automatically activated by the trigger wire to display the camera when reversing. After reversing, it goes back to the original mode. It not only can be used for reversing, but also can be ON all the time. A short-circuit protector and a TVS device are built in to keep the monitor from being damaged.
【Heavy Duty Camera】Camera comes with the IP69K waterproof rating, and 10G vibration-proof rating. These ensure the camera work well in extreme conditions. With 18 IR lights, the driver also can see clearly what is in the blind spots at night or when the ambient light is low. Built-in microphone.

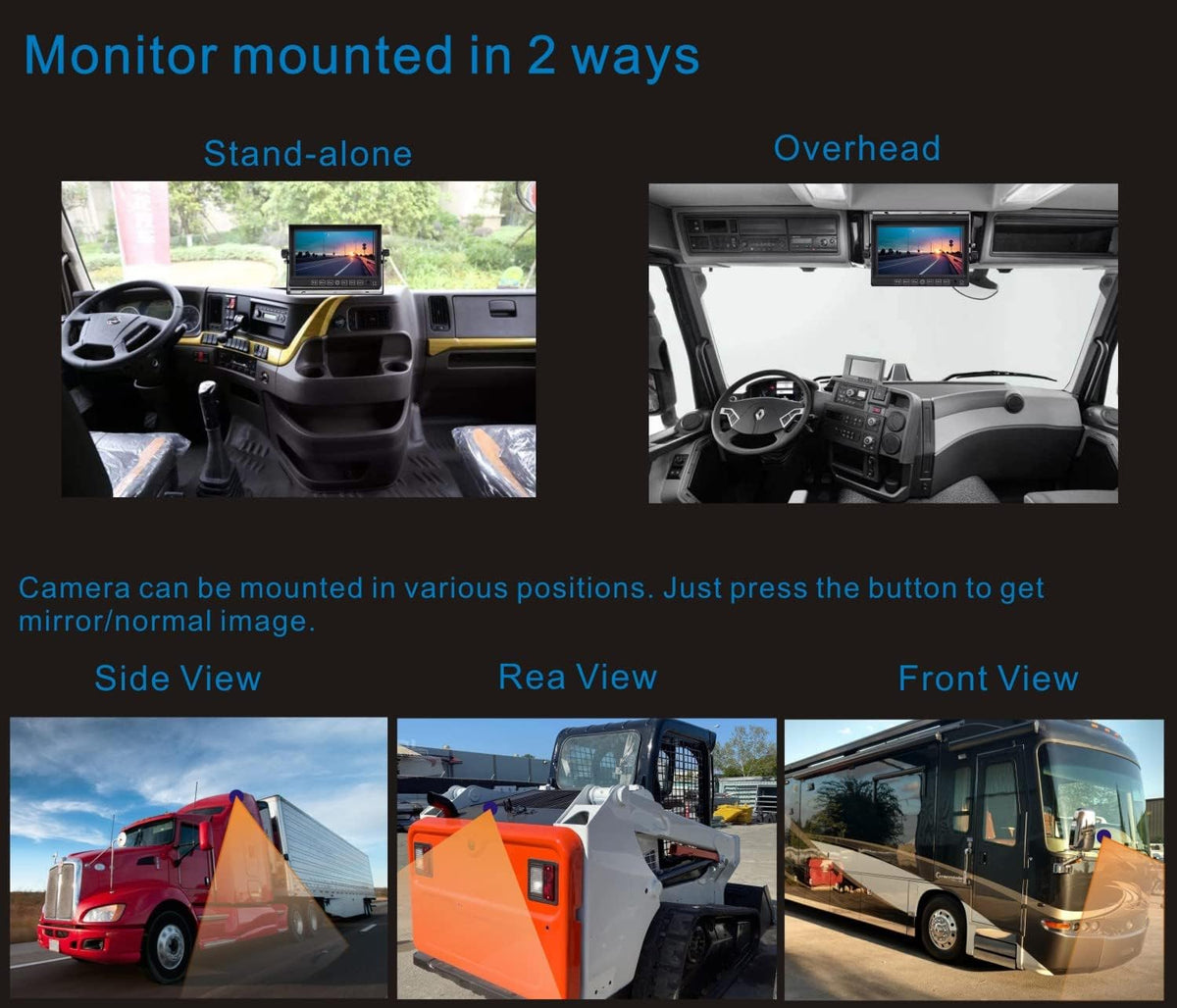

【Normal/Mirror Image】The image can be rotated by buttons. It allows the camera to be mounted in any directions, up-side-down or horizontally，just press the button to get a right image on the monitor.

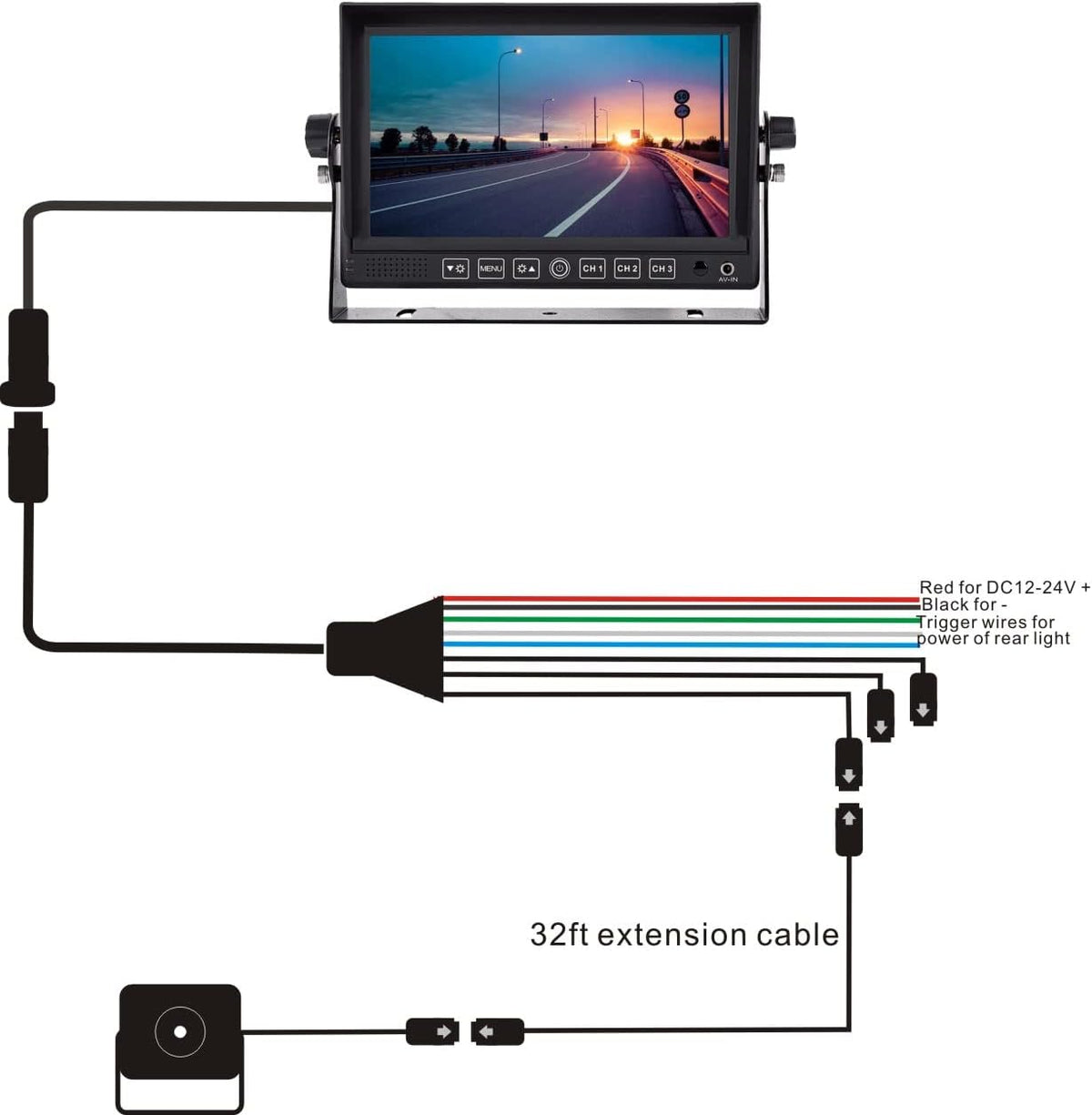

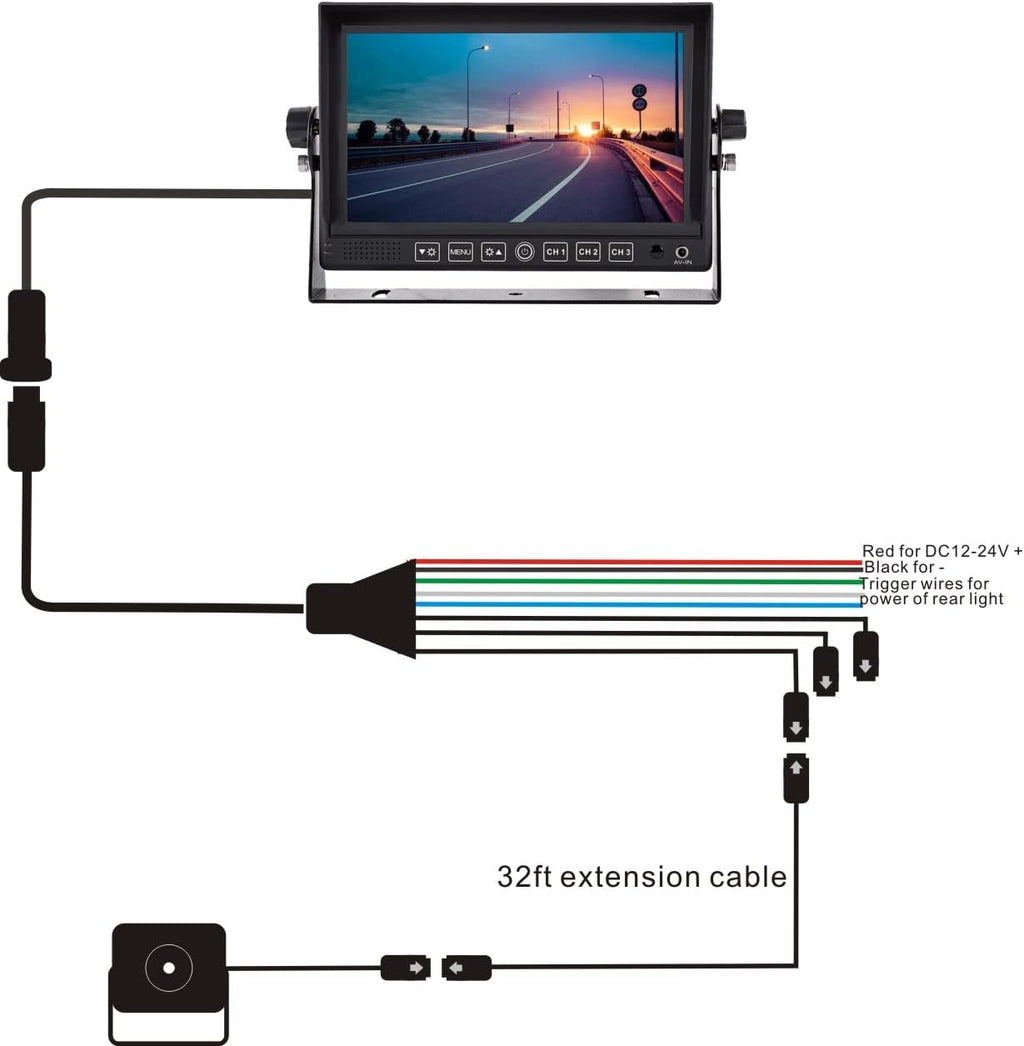

【Easy to Connect】This system has no different types of connectors. All of them are 4-pin connectors, you just need to plug them together one by one in sequence. Then power it by rear lamp, it works.
TOUCH BUTTON MONITOR SPECIFICATIONS:
◇ Screen size: 7 inch single view(No split)
◇ Brand new digital LCD panel, resolution R.G.B 800X480
◇ [16 : 9 ] wide screen display
◇TV System: NTSC/PAL
◇Multiple menu languages:English, Dutch, French, Spanish, Russian, German, Italian.
◇Support max 3 cameras video input
◇Monitor displays cameras one by one in single view,
◇Normal/mirror image of each camera can be set separately by menu.
◇Separate trigger control wire for each camera
◇Monitor will be automatically switched to the image of the camera which is triggered,
and back to the last mode when the trigger stops.
vThe trigger delay time can be adjusted (0-4s) on each camera.
◇In standby mode, monitor will turn on automatically when triggered and will switch to
the image of the triggered camera.
◇Working voltage: DC12-２４V
◇Built-in short-circuit protector(When installing and connecting the kit, people connects
the female 4-pin connectors to the male one from the camera and monitor, they sometimes connect the video pin of
the camera to the power pin of the monitor. It may cause a short-cut, the built-in protector may
keep the monitor away from being burnt.)
CAMERA SPECIFICATIONS:
◇ Color CCD SENSOR
◇ Wide-Angle, Water-Proof, Night Vision
◇ PAL / NTSC system (optional )
◇ View angle: 120 degree
◇ Horizontal Resolution : 420 TV Line
◇Video output : 1.0 Vp_p/75 ohm
◇S/N ratio : > 48 db
◇Waterproof: IP69K
◇Electronic shutter : 1/60 ~ 1/10000 sec
◇Power Supply : DC12V
